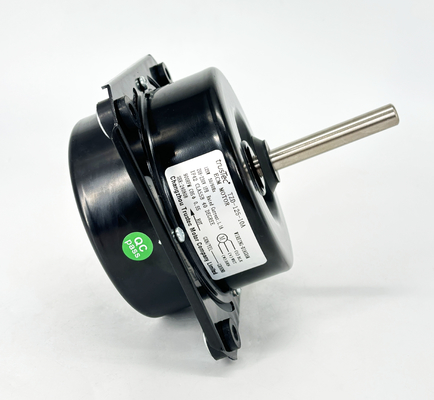

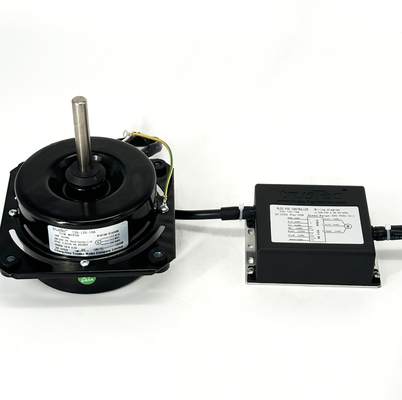

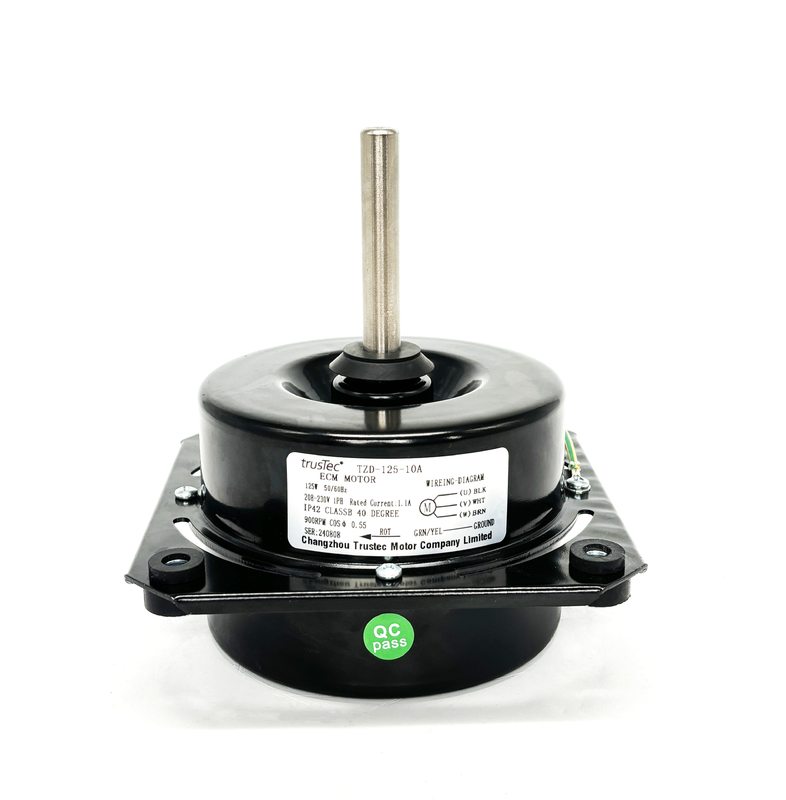

Motor ECM - 125W 900RPM 220V 50/60HZ 0-10V Controle de velocidade
Local de Origem:Changzhou, China
Marca:trusTec
Certificação:CE
Número do modelo:TZD-125-10A-TVM
Quantidade mínima de pedido:200 pcs
Preço:Negotiable (FOB/CNF/CIF)
Condições de pagamento:T/T, L/C
Capacidade de fornecimento:100, 000 pcs por mês
Tags:
Detalhes do produto
Destacar:
Motor BLDC de 125 W
,Motor BLDC de 900 RPM
,Motor BLDC de 220 V
Product:
Motor comutado eletronicamente (ECM)
Supply Voltage:
220 V
Enclosure Type:
TEAO ((Totalmente fechado Air Over)
Supply Frequency:
50/60hz
Thermal Overload:
Equipados com uma sobrecarga térmica automática
Current:
1.65A
Phase:
Fase única
Output Power:
125W
Mounting:
Alegria de todos os anjos.
Speed:
900rpm
Bearings:
Rolamentos de esferas
Poles:
10p
Mounting Orientation:
Todos os ângulos
Shaft Length:
3.04" / 78mm
Insulation Class:
Classe B
Frame Size:
120 mm
Max. Ambient Temperature:
40°C/104°F
Shaft Diameter:
1/2" / 12,7mm
Rotation:
CCW ((SE)
Flat Length:
1.99" / 50mm

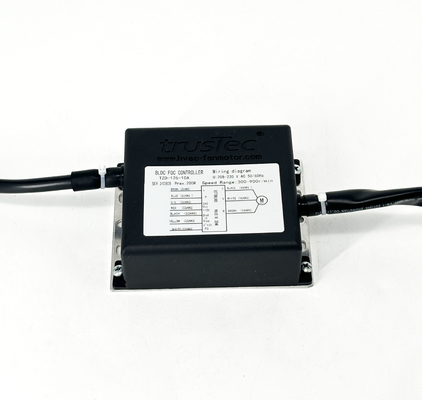

Speed Control:
0-10V VSP
Lead Length:
11.8" / 300 mm
Other:
FG e 10VDC
