TRUSTEC MOTOR SUA FÁBRICA DE CONFIANÇA
Vendas e Suporte:

|
| Place of Origin: | Changzhou, China |
| Marca: | trusTec |
| Certificação: | CE、UL529388 |
| Model Number: | YDK120-90-4B60-USM |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Preço: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

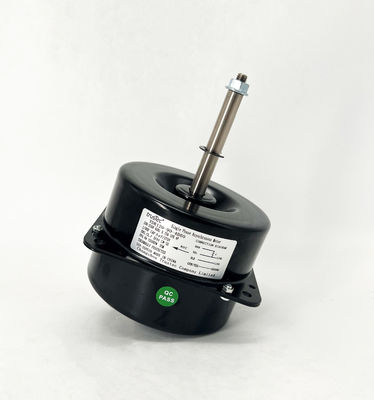

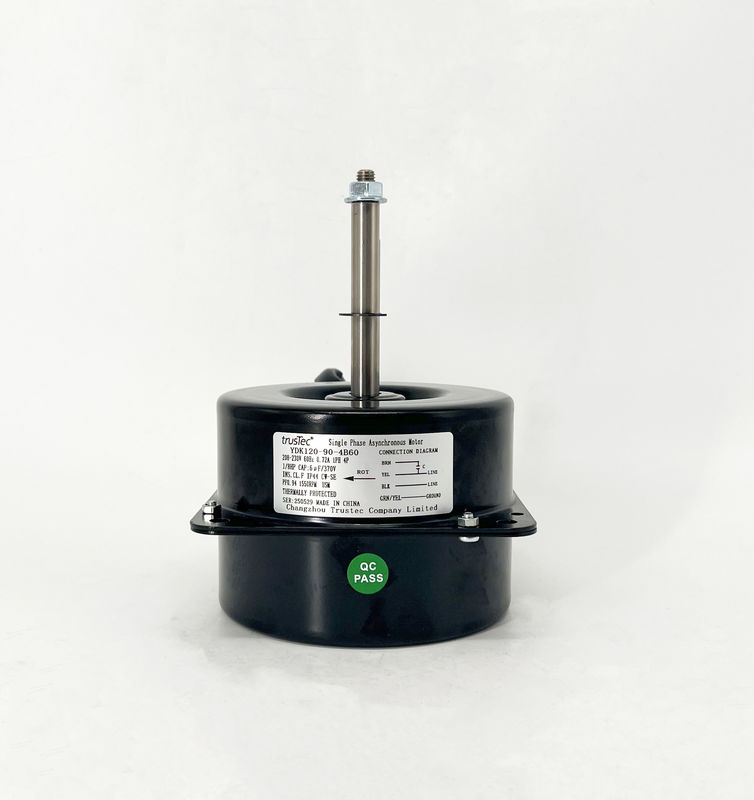

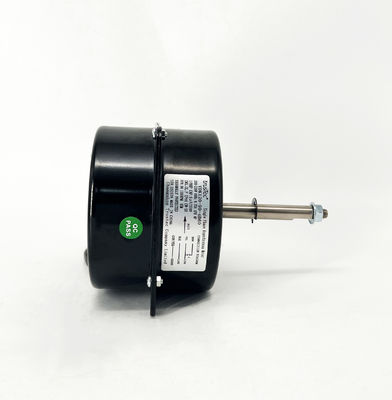

| Product: | AC Fan Coil Unit Motor | Frame: | 143mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.72A |
| Phase: | Single Phase | Output HP: | 1/8HP |
| Shaft Flat: | One Flat | Speed: | 15500RPM |
| Mounting Orientation: | All Angle | Capacitor: | 6uF/370V |
| Insulation Class: | Class F | Pole: | 4P |
| Bearings: | Ball Bearing | Shaft Diameter: | 12mm/0.47" |
| PF: | 0.94 | Rotation: | CW-SE |
| Flat Length: | 28.5mm/1.12" | Max. Ambient Temperature: | 70℃/158℉ |
| Lead Length: | 750mm/29.53" |
