| Place of Origin: | Changzhou, China |
| Marca: | trusTec |
| Certificação: | CE |
| Model Number: | YDK-32-6A-SGR |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Preço: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

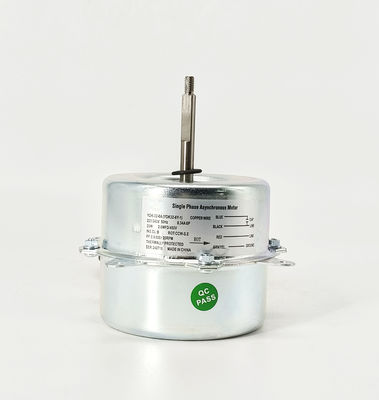

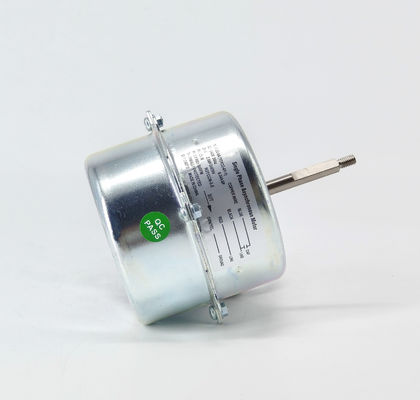

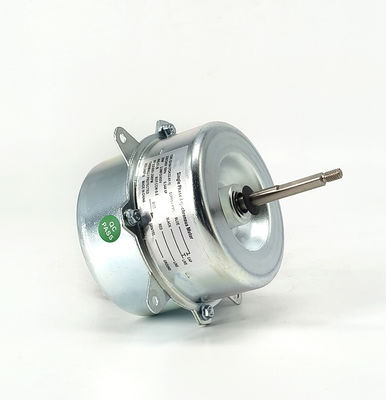

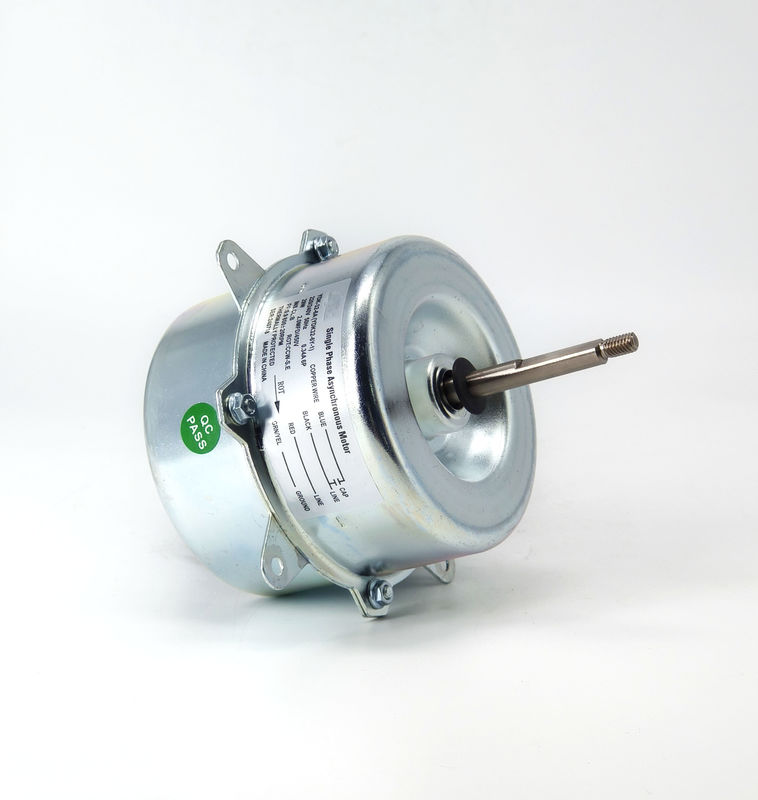

| Product: | Indoor Fan Motor | Frame Size: | 95mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220/240V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped with an Automatic Thermal Overload | Current: | 0.34A |
| Phase: | Single Phase | Output HP: | 29W |
| Shaft Flats: | One flat | Rated Speed: | 800±20RPM |
| Bearings: | Ball Bearing | Pole: | 6P |
| Mounting: | Stud Mounting All Angel | Capacitor: | 2.0MFD/450V |
| Insulation Class: | Class B | Shaft Diameter: | 0.5" /12.7mm |
| Rotation: | CCW-SE | Shaft Length: | 2.24" /57mm |
| Max. Ambient Temperature: | 40℃/104℉ | Flat Length: | 1.04" /26.5mm |
| PF: | 0.9 | Lead Length: | 39.37" /1000mm |
| Destacar: | Motor AC de 800 RPM,Motor AC de 220/240 V,Motor AC de 29 W |
||
