| Place of Origin: | Changzhou, China |
| Marca: | trusTec |
| Certificação: | CE、UL529388 |
| Model Number: | YDK-375-6B57-USS |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Preço: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

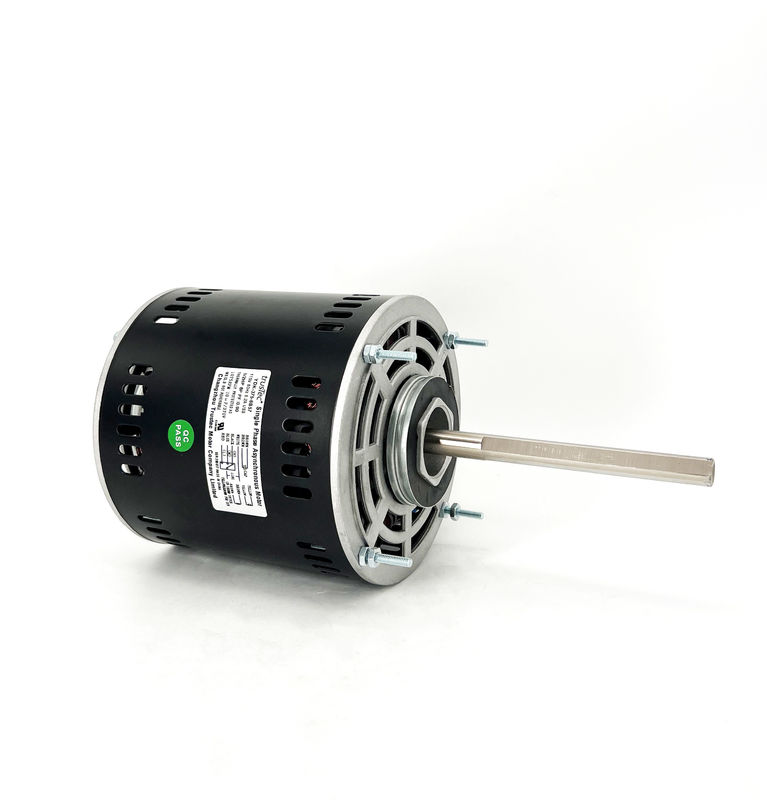

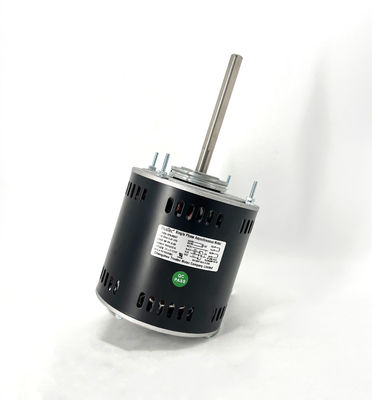

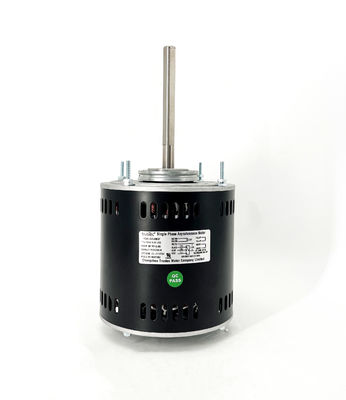

| Product: | Blower Fan Motor | Frame: | Nema 48 |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 115V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 6.2A |
| Phase: | Single Phase | Output HP: | 1/2HP |
| Shaft Flat: | Right Angle Flat | Speed: | 1075RPM/3SPD |
| Mounting Orientation: | All Angle | Capacitor: | 10uF/370V |
| Insulation Class: | Class B | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 12.7mm/0.5" |
| Rotation: | CW/CCW | Flat Length: | 101.6mm/4" |
| Max. Ambient Temperature: | 50℃/122℉ | Lead Length: | 300mm/11.81" |
| Motor Shell Length: | 142mm/5.59'' | Screw Length: | 14mm/0.55" |
| Shaft Length: | 296mm/11.65'' |
