TRUSTEC MOTOR SUA FÁBRICA DE CONFIANÇA
Vendas e Suporte:

|
| Place of Origin: | Changzhou, China |
| Marca: | trusTec |
| Certificação: | CE、UL529388 |
| Model Number: | YDK-250-6A62-USM |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Preço: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

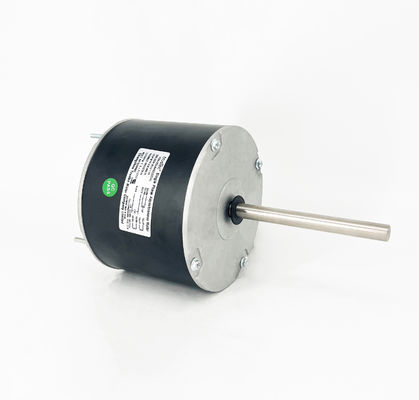

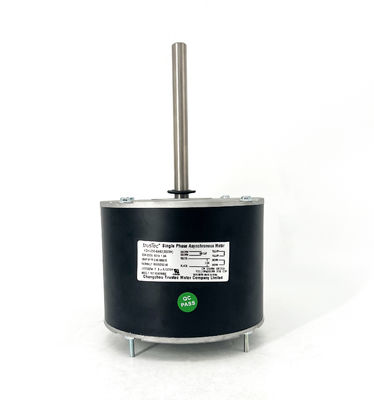

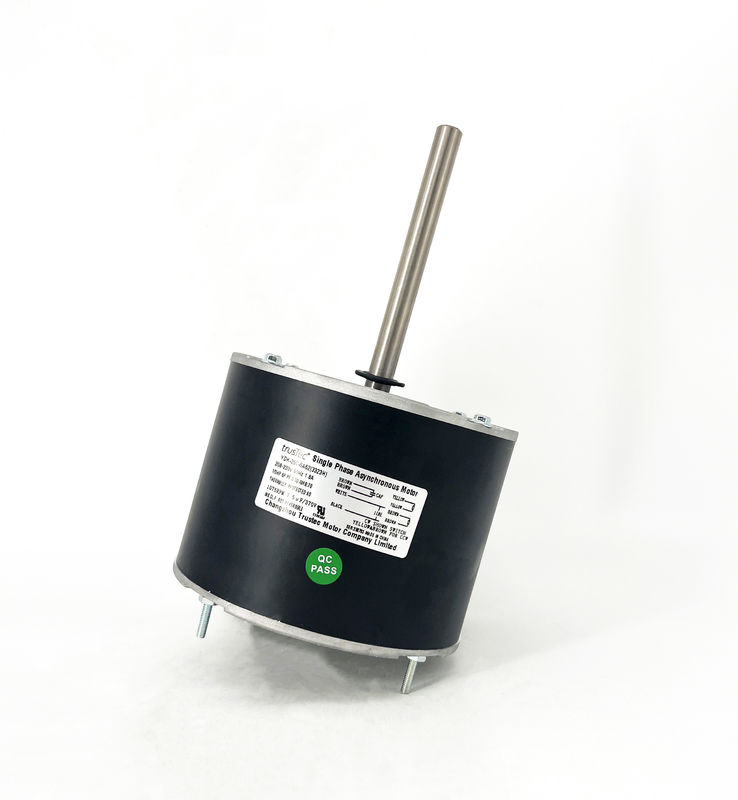

| Product: | Condenser Fan Motor | Frame: | 142mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 208-230V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.8A |
| Phase: | Single Phase | Output HP: | 1/3HP |
| Shaft Flat: | One Flat | Speed: | 1075RPM |
| Mounting Orientation: | All Angle | Capacitor: | 7.5μF/370V |
| Insulation Class: | Class F | Pole: | 6P |
| Bearings: | Ball Bearing | Shaft Diameter: | 0.5"/12.7mm |
| Rotation: | Reversible | PF: | 0.90 |
| Max. Ambient Temperature: | 70℃/158℉ | Lead Length: | 48.03"/1220mm |
| Motor Shell Length: | 4.29"/109mm | Shaft Length: | 9.29"/236mm |
| Flat Length: | 4.00"/101.6mm | Screw Length: | 0.59"/15mm |
Pessoa de Contato: Selena Chai
Telefone: +86-13961191626
Fax: 86-519-85109398
