| Place of Origin: | Changzhou, China |
| Marca: | trusTec |
| Certificação: | CE、UL529388 |
| Model Number: | YSK-350-4A60-SBN |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Preço: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

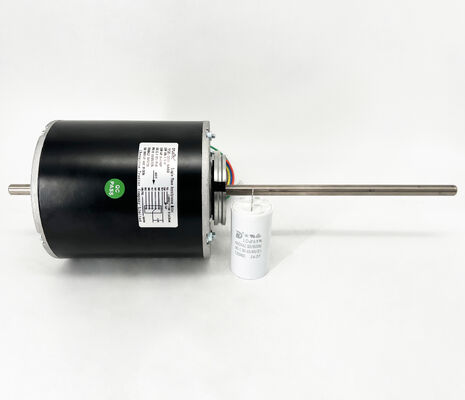

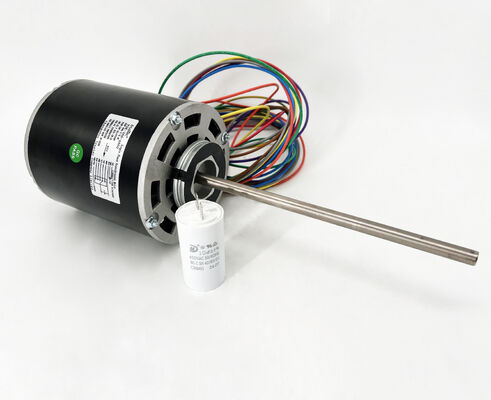

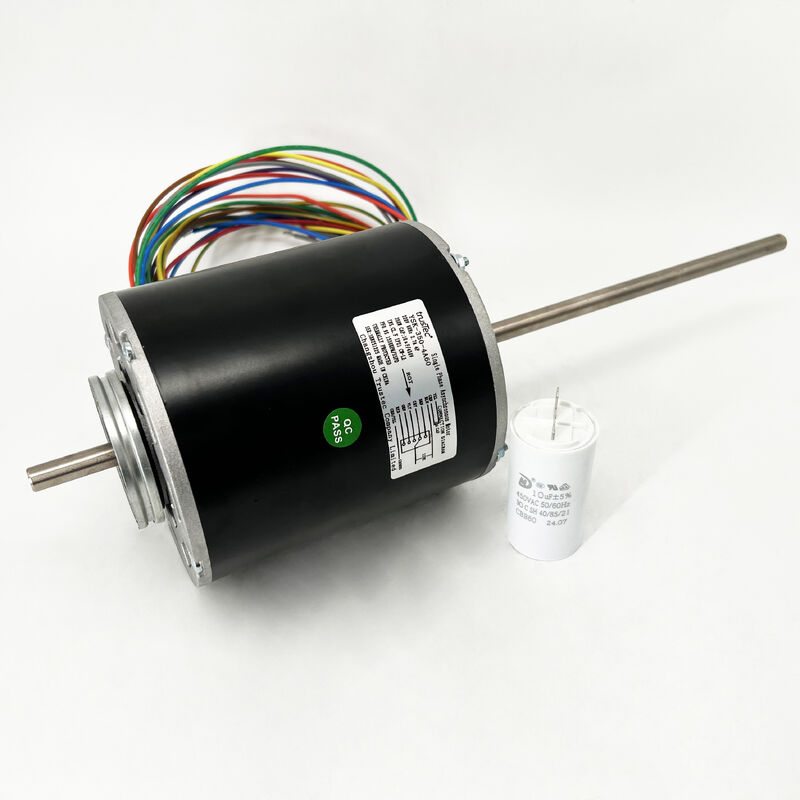

| Product: | AC Fan Coil Unit Motor | Frame: | 42 frame |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 60Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 2.7A |
| Phase: | Single Phase | Output HP: | 350W |
| Shaft Flat: | One Flat | Speed: | 1500RPM/5SPD |
| Mounting Orientation: | All Angle | Capacitor: | 10.0μF/450V |
| Insulation Class: | Class F | Pole: | 4P |
| Bearings: | Ball Bearing | Shaft Diameter: | 10mm/0.39" |
| Rotation: | CW-LE | PF: | 0.95 |
| Shaft Length: | 400mm/ 15.75" | Max. Ambient Temperature: | 70℃/158℉ |
| Lead Length: | 1200mm/47.24" | Motor Shell Length: | 135mm/5.31" |
